Fully Automated Accessioning and Benchtop Sample Tube De-Capping/Re-Capping with Sample to Microplate Transfer

STP-3000 Automated Sample Transfer Processing System

Safely remove samples from a variety of tube types, including screw-capped, swab style, microtubes, and others. Simplify sample accessioning liquid transfer with an automated, benchtop system that accurately transfers 96 liquid samples from 96 sealed tubes to a 96-well microplate in just 40 minutes.

STP-3000-sample-automation-complete-genomics-mobile

Fully Automated Accessioning and Benchtop Sample Tube De-Capping/Re-Capping with Sample to Microplate Transfer

STP-3000 Automated Sample Transfer Processing System

Safely remove samples from a variety of tube types, including screw-capped, swab style, microtubes, and others. Simplify sample accessioning liquid transfer with an automated, benchtop system that accurately transfers 96 liquid samples from 96 sealed tubes to a 96-well microplate in just 40 minutes.

Features and Benefits

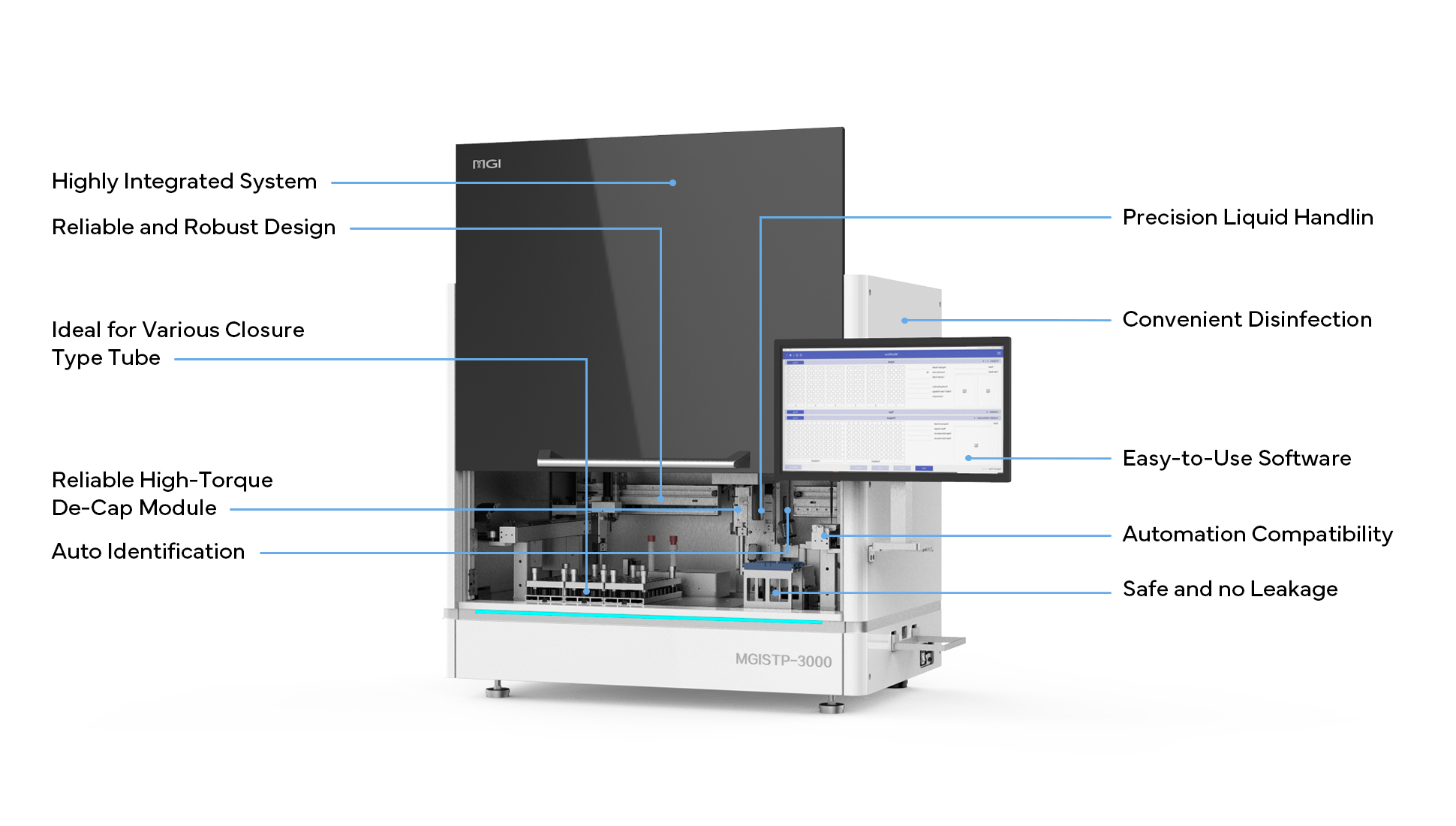

The benchtop STP-3000 integrates a tube handling robotic arm, de-capping and re-capping module, tube barcode reading, liquid handling pipetting channel and negative pressure protection to provide fast and convenient sample transfer. Safely remove caps, transfer liquids to a microplate and re-cap the sample tube with the same cap, reducing waste and eliminating the risks from operators handling biological collection tubes.

Safe

Safely un-cap a wide variety of collection tubes and transfer sample liquid into a microplate and re-cap with the same cap.

Clean

Two HEPA filters and a UV light ensure a safer environment, with the HEPA filters providing 99.995% filtration efficiency at 0.3µm.

Flexible

Adapts to various closure types, saliva and feces containers, and optional blood collection tubes.

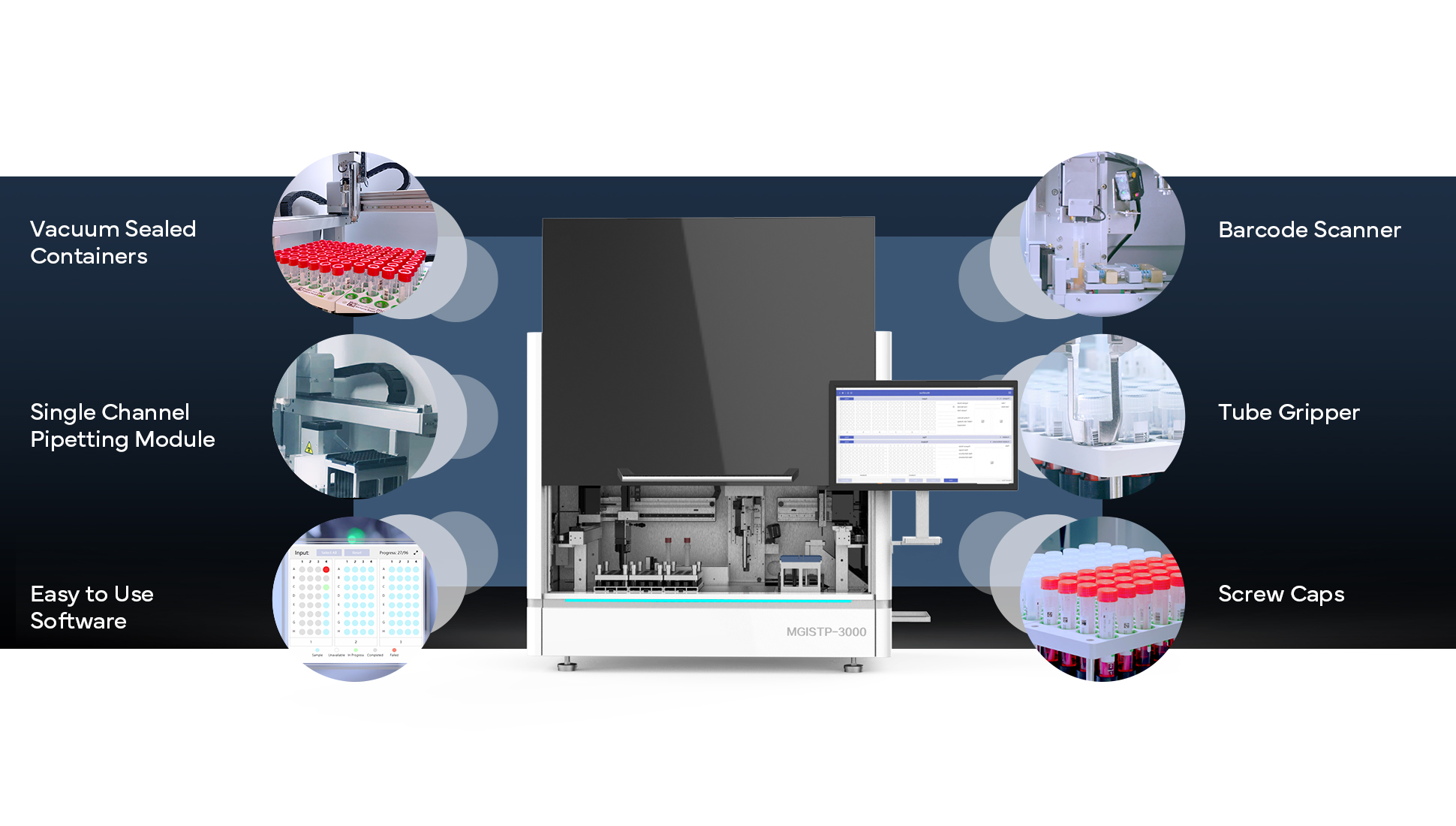

STP-3000 Features

STP-3000-lab-automation-complete-genomics

Single Channel Pipetting Module

> Single channel pipetting module
> Accurate and reliable pipetting
> Pipetting from 10μL to 1000μL

Easy-to-Use Software

> Integrated 23 inch touch screen
> Running status and results can be displayed in real time
> Simulation function available to test protocols
> Labware consumable library facilitates protocol writing
> Capacitive (cLLD) liquid level detection allows for reliable pipetting techniques

Tube Gripper

> Industrial Epson robot and tube gripper tool
> High speed, reliable tube movement
> Multiple finger-sets allow for a variety of tube types
> Real time grip sensing in tool

Barcode Scanner

> Capping station rotates tube for scanner access, no need to arrange tube barcodes in any orientation
> Dual sensors scan both tubes simultaneously
> System transfers tube barcode to plate output text file

Vacuum Sealed Containers

> Decapper can be configured to remove vacuum tops
or screw caps
> No need to remove swaps from tubes in system

Screw Caps

> Standard finger-sets can work with a variety tube typesThe tool also offers single tip pipetting for certain processes
> Tubes are re-capped with the SAME cap after sample has been pipetted
> No need to align bar codes facing in any direction

STP-3000 in Action

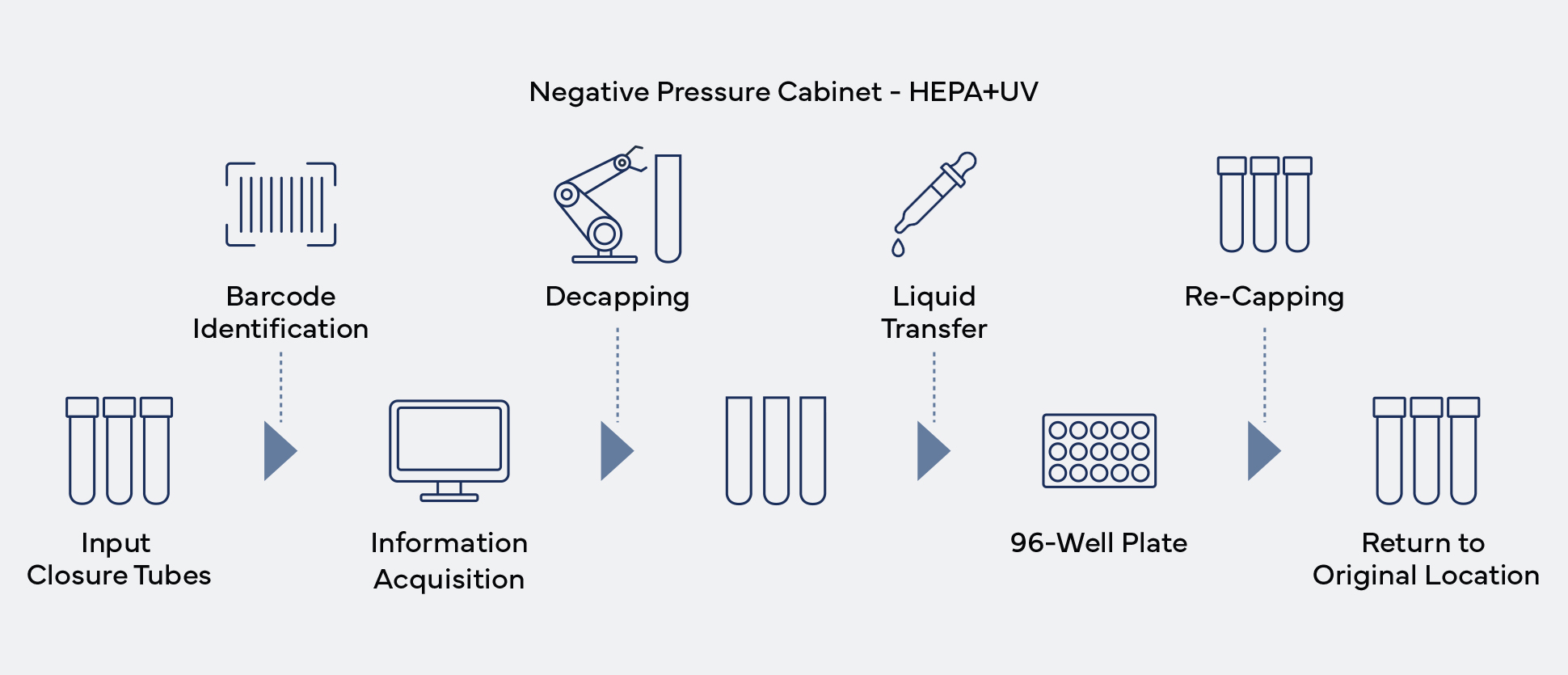

Total Automated Sample Accessioning from a Collection Tube

Use the STP transfer processing, SP sample preparation system and ZLIMS laboratory information management system together to maximize testing efficiency.
