DNBSEQ-T7 Sequencer
Discover the $150 Genome
DNBSEQ-T7 Sequencer
Discover the $150 Genome
Turbocharge your Sequencing
The T7 optimizes the efficiency and productivity of the whole genome, deep exome, epigenome, transcriptome, single-cell omics, spatial omics, and other large sequencing projects. With the ability to generate 20,000 30x whole genomes in one year at an affordable $150 per genome, T7 provides high-quality data at unparalleled speed.
Flexible
The T7 offers unmatched flexibility with its 4 independent flow cells, empowering you to run them at any time without the need to batch large quantities of samples
Fast
Achieve 24/7 production with your large sequencing project by generating 7 Tb data in 24 hours with automatic washes in between runs
Accessible
With a cost of $150 per Genome or $1.5/Gb, the T7 opens the doors to accessibility for your groundbreaking sequencing projects
See the T7 in Action
Say Goodbye to Amplification Errors Associated with PCR
Performance Parameters
| # of Flow Cells | Reads | Read Length | Data Output | Run Time* | Q30 |
|---|---|---|---|---|---|
| 1-4 | 5.8B | PE100 | 1 – 5 Tb | 16 hr (1 FC) 18 h (4 FC) |
>85% |
| PE150 | 1.7 – 7 Tb | 22 hr (1 FC) 24 hr (4 FC) |
>85% |
* Run time includes Flow Cell loading, sequencing, and data outputting in .cal file.
.cal is a binary file format generated by Complete Genomics sequencer basecall software. 1FC= 1 flow cell. 4FC= 4 flow cells.
Specifications are based on Complete Genomics E. coli control library using Complete Genomics standard library preparation method. Actual performance may vary based on library type, library quality, insert size, and other experimental factors.

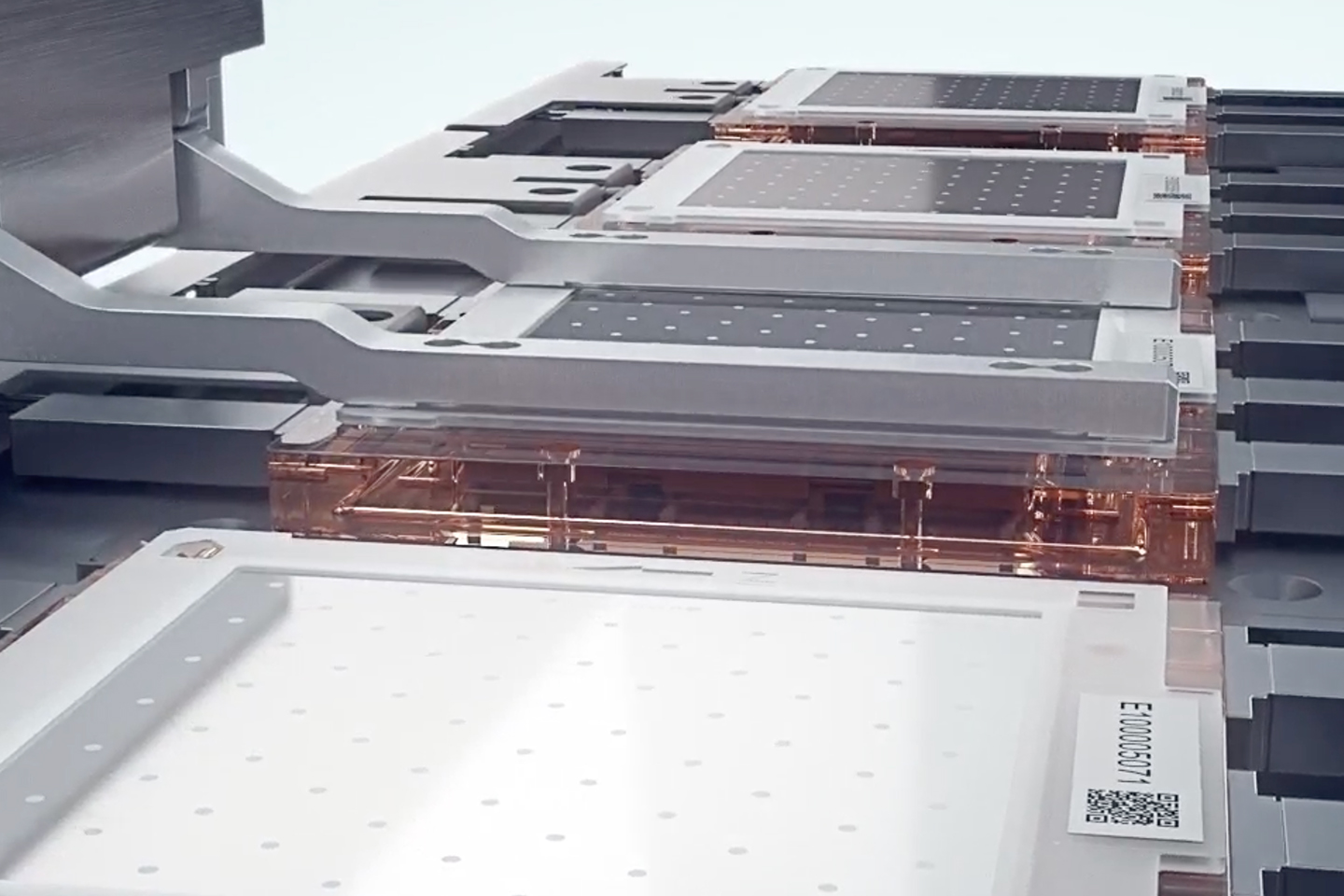

Independent Flow Cells
With 4 independent flow cells you can run at any time, you’ll get the flexibility you want without the need to batch large quantities of samples

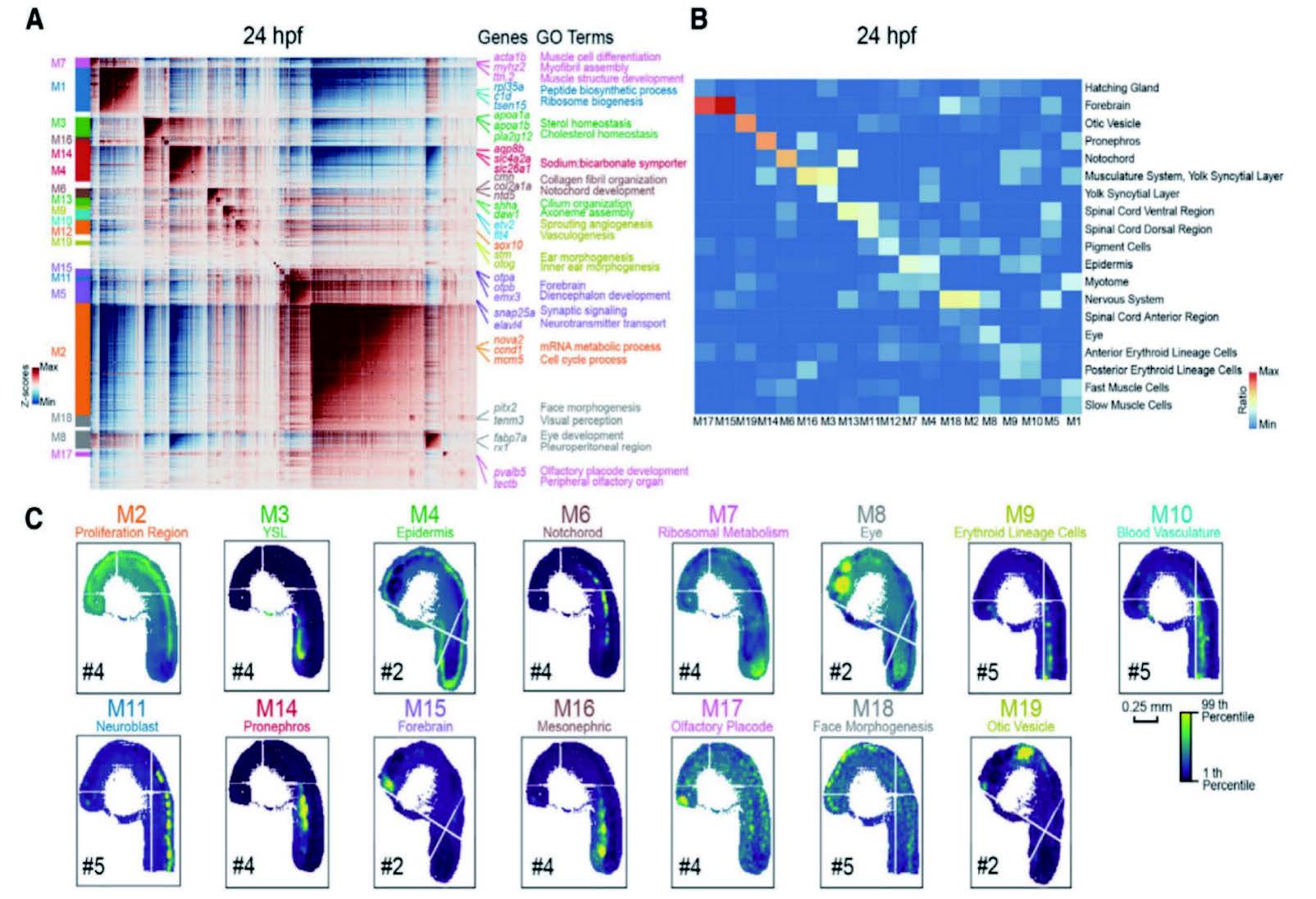

True single-cell resolution by Stereo-Seq and DNBSEQ-T7
A high-resolution spatiotemporal transcriptomic atlas of zebrafish embryogenesis can be constructed using the Stereo-seq kit S1 and the DNBSEQ-T7 sequencing platform.
Data Analysis Has Never Been Easier
All our sequencing platforms can work as standalone systems from sample to result without any network connection. As a result, there is no risk of a data breach and you can be assured your data is secure.
Key Applications
Whole Genome Sequencing (WGS)
DNBSEQ-T7 offers superior performance for WGS.
In a comparative analysis, the DNBSEQ-T7 exhibited low GC bias and highly consistent data quality across a spectrum of sample types and GC outputs.
This uniformity demonstrates accuracy and versatility for diverse WGS applications in clinical research, population studies, agricultural research, and microbiology.
Figure 2. Overlap of UMAP clusters for DNBSEQ-T7 and NovaSeq 6000 reveals consistent results across replicates.
Single-Cell SequencingWhole Genome Sequencing (WGS)
These data confirm that DNBSEQ-T7 is an excellent sequencing tool for measuring gene expression and for identifying and classifying cell populations in single-cell experiments.
Figure 1. GC bias with DNBSEQ-T7 remains consistently low across different sample types with varying GC outputs.
Specifications
| Dimensions / Net Weight | Dimensions: | 65 in x 35.6 in x 71.5 in |
| Net Weight: | 1687lbs (765 Kg) |
|
| Power | Type: | 200~240 V, 50/60 Hz, 30 A |
| Rated Power: | 3000 VA | |
| Operating Environment Requirements | Temperature: | 19~25 °C, <2 °C change per hour |
| Relative Humidity: | 30%RH – 80%RH, non-condensing | |
| Atmospheric Pressure: | 80 kPa – 106 kPa | |
| Waterproof Rating: | IPX0 | |
| Altitude: | <2000 meters | |
| Floor Bearing Capacity | Requirement: | ≥ 650 Kg/m2 |
| Control Computer Configurations | CPU: | Intel CORE I7-7700 4Core x2 3.6GHz |
| Internal Storage: | 16 Gb RAM | |
| HDD: | 1 Tb | |
| Operating System: | Windows 10 | |
| SSD: | 128 Gb | |
| Bandwidth for Network Connection | Local Storage Network: | 300 MB/s |
| FASTQ Computing Uploads: | 1000 MB/s |
Ordering Information
| Category | Product | Cat. No. |
|---|---|---|
| Instrument | DNBSEQ-T7 Genetic Sequencer | 940-000698-00 |
| Instrument | DNB Loader DL-T7 RS | 900-000697-00 |
| Sequencing Reagents | FCL PE100 High-throughput Sequencing Set V1.0 | 940-000838-00 |
| Sequencing Reagents | FCL PE150 High-throughput Sequencing Set V1.0 | 940-000836-00 |
A Complete Solution for Every Step of Your Workflow
Kits & Reagents
No matter your workflow, our kits are simple to use and easily integrated. We also offer conversion kits for 3rd party library prep.
Lab Automation
With solutions from sample extraction to lab automation you can spend less time overseeing equipment and pursue more useful activities.
