Meet the NGS Workhorse
DNBSEQ-G400 Sequencer
Unparalleled accuracy, maximum versatility, and major flexibility deliver seamless execution for diverse applications in one system.
Your Day-to-Day Sequencing Solution
The DNBSEQ-G400 provides a comprehensive range of sequencing options, supporting read lengths up to SE400/PE300 and 2 flow cell types. The system also features built-in primary data analysis and optimized optical and biochemical systems.
icon-accurate Our proprietary DNBSEQ technology ensures exceptional accuracy, eliminating clonal errors and index hopping-generating >99% SNP/indel precision and sensitivity.
icon-log With a wide dynamic range (between 55 GB and 1440 GB per run per day) the G400 supports multiple read lengths, from SE50 up to SE400 or PE300.
icon-flexible Choose between two flow cell types, depending on your throughput and runtime requirements. PE150 sequencing can be completed in as little as 37 hours.
See the G400 in Action
DNBSEQ-G400 Sequencer

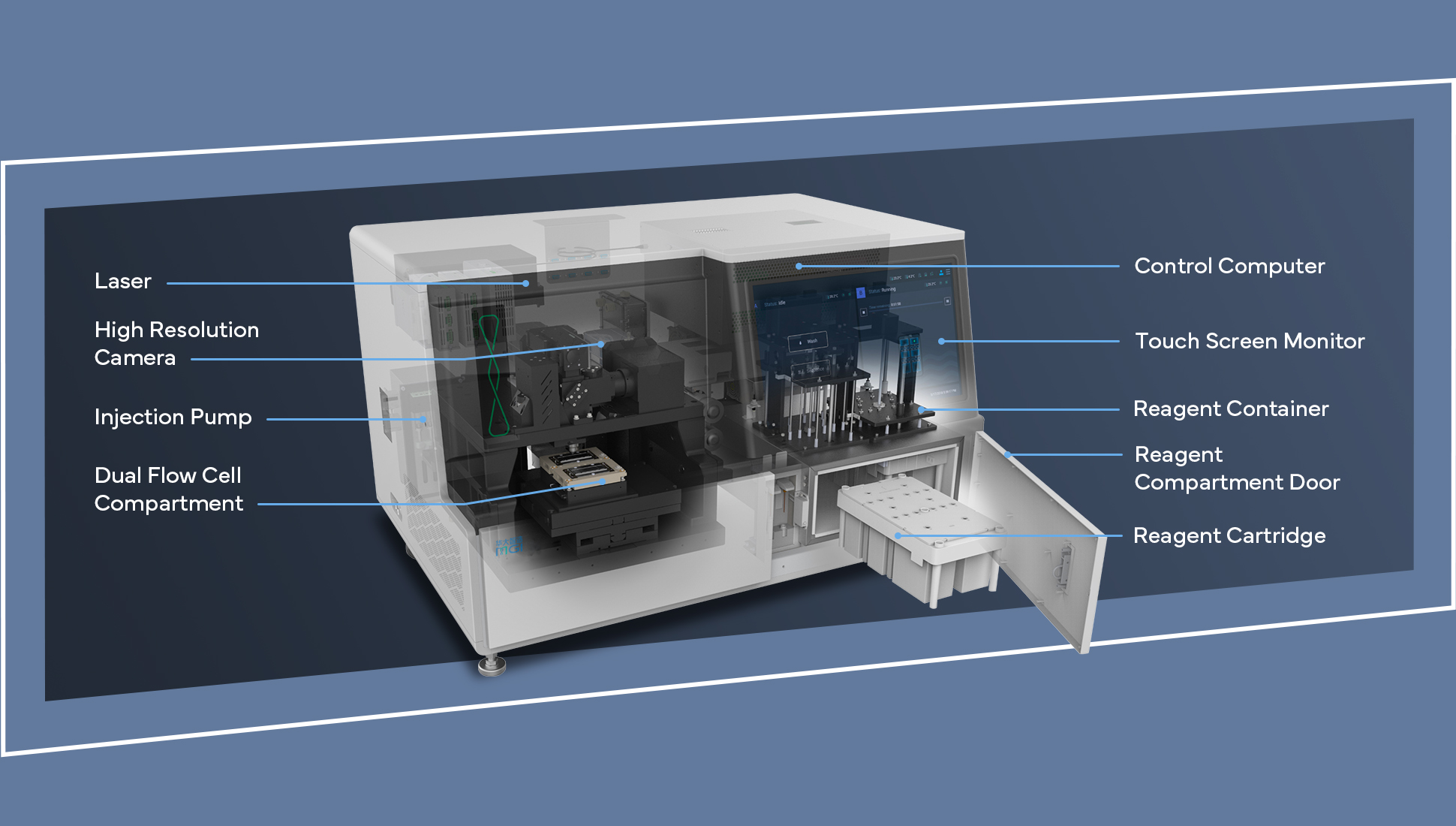

G400-instrument-features-1col-1940x1100b
Performance Parameters
| Flow Cell Type | Reads | Read Length | Data Output* | Run Time** | Q30 |
|---|---|---|---|---|---|
 FCS | 550M | SE100 | 55 Gb | 13 hr | >85% |
| PE100 | 110 Gb | 26 hr | >85% | ||
| PE150 | 165 Gb | 37 hr | >85% | ||
| 300M | PE300 | 180 Gb | 98 hr | >80% | |
 FCL | 1500-1800M | SE50 | 75-90 Gb | 14 hr | >85% |
| SE100 | 150-180 Gb | 25 hr | >85% | ||
| PE100 | 300-360 Gb | 38 hr | >85% | ||
| PE150 | 450-540 Gb | 56 hr | >85% | ||
| SE400 | 600-720 Gb | 109 hr | >70% | ||
| PE200 | 600-720 Gb | 107 hr | >75% |
* The data output is per one flow cell
** Run time for 2 flow cells includes the sequencing time and data analysis time
(barcode demultiplexing and FASTQ generation)
** Run time for 2 flow cells includes the sequencing time and data analysis time
(barcode demultiplexing and FASTQ generation)
Performance Parameters
| Instrument Specifications | ||
|---|---|---|
| Dimensions / Net Weight | L 42.9 in x W 29.9 in x H 27.9 in | 440.9 lbs |
| Power | Type : Rated Power : | 100-240 V, 50/60 Hz 1200 VA |
| Operating Environment Requirements | Temperature : Relative Humidity : Atmospheric Pressure : Waterproof Rating : | 66.2°F - 77°F 20% RH-80% RH, non-condensing 70 kPa-106 kPa IPX0 |
| Control Computer Configurations | CPU : Internal Storage : HDD : Operating System : SSD : | Intel Xeon E510Core * 2 2.2Ghz 256GB RAM 16TB 480 Gb Windows 10 Enterprise |
* The data output is per one flow cell
** Run time for 2 flow cells includes the sequencing time and data analysis time
(barcode demultiplexing and FASTQ generation)
** Run time for 2 flow cells includes the sequencing time and data analysis time
(barcode demultiplexing and FASTQ generation)
G400-data-analysis-2col-1440x960 Data Analysis Has Never Been Easier
All our sequencing platforms can work as standalone systems, from sample to result, without a network connection. As a result, there is no data breach risk, and you can be assured your data is secure.
A Complete Solution for
Every Step of Your Workflow
Every Step of Your Workflow
icon-workflow-sample-extraction Extraction
Flexible solutions to prepare gDNA from your samples.
Learn More
icon-kits-and-ragents Prep
Find multiple kits and reagents for various applications, or combine your own library preparation kits with our conversion kits.
Learn More
icon-lab-automation Automation
ZLIMS Pro is a laboratory tool that manages sample extraction, library preparation, sequencing and data analysis.
Learn More
icon-sequencing-platforms Platforms
From low- to ultra-high-throughput, we have sequencing platforms that can meet any lab’s needs.
Learn More
icon-software-and-analysis Analysis
Make data analysis easier and more secure with the ZTRON LITE, ZTRON Pro, and ZBOLT Pro analysis software.
Learn More
