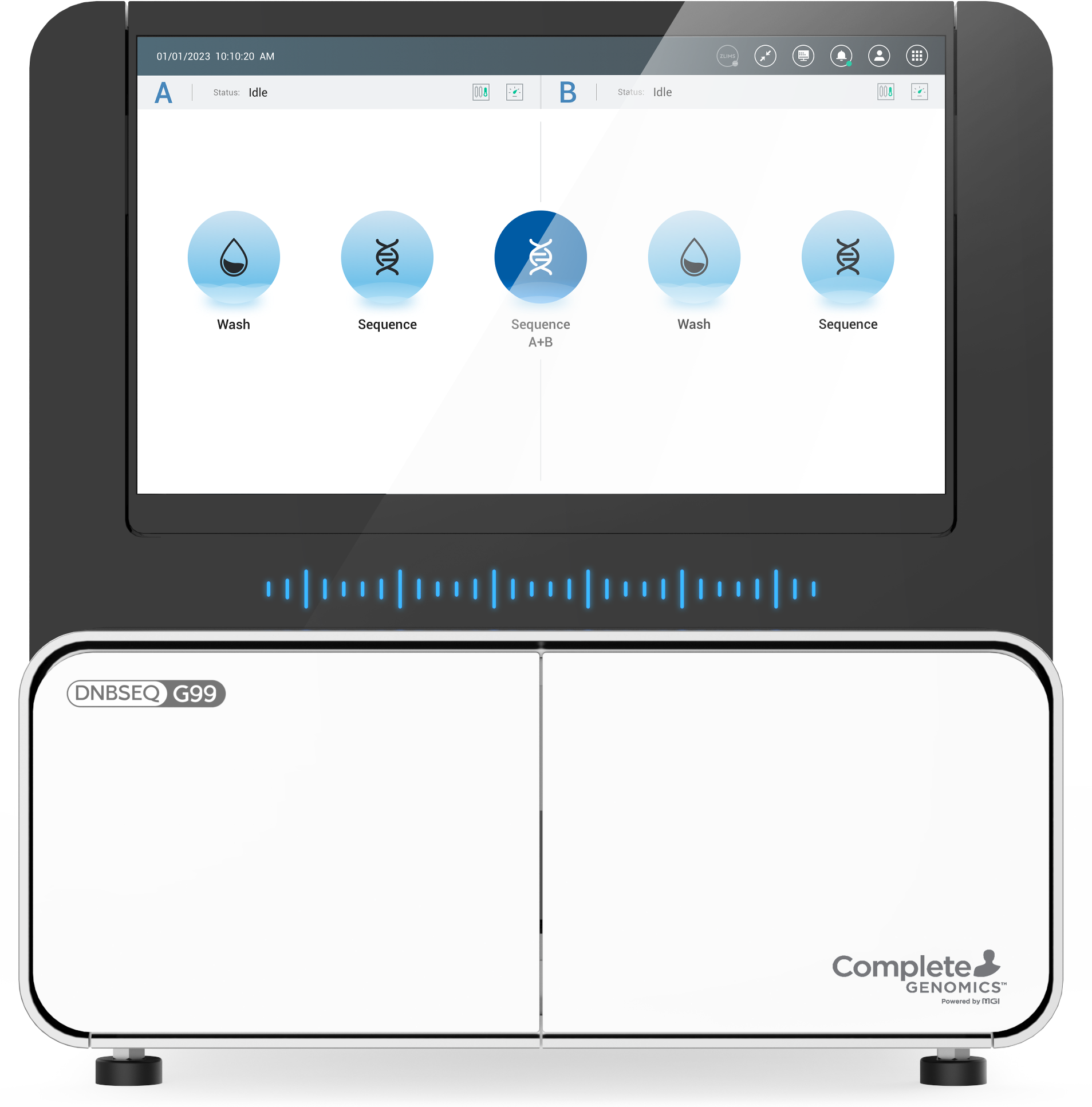

DNBSEQ-G99 Sequencer

Everyday Genomics Made Easy

DNBSEQ-G99-Sequencer-Complete-Genomics-Mobile

DNBSEQ-G99 Sequencer

Everyday Genomics Made Easy

Fast

Get up to 48 Gb in less than 12 hours for PE150 (from loading to FASTQ).

Q40 High Accuracy

Q40-rated for unmatched sequencing precision.

Flexible

Run 2 flow cells independently at any time.

The Ultimate in Sequencing Speed

DNBSEQ-G99 offers low- to mid-range throughput, making it a superior option for targeted gene and small genome sequencing research.

The G99 adopts the triangular configuration on the patterned array, reaching a higher density of DNBs and resulting in higher data output, up to 48 Gb per run, in less than 12 hours.

Additionally, equipped with a proprietary high-resolution objective lens and high-precision temperature control system, the run time for PE150 sequencing is exceptionally fast—within 12 hours. Informative preliminary reports are available within the first 2.5 hours during PE100 or PE150 sequencing runs.

DNBSEQ-G99-Complete-Genomics-Front-View

See the G99 in Action

Dual Flow Cells for Maximum Flexibility

With the ability to run two flow cells independently, G99 gives you the adaptable option to plug-and-play as needed.

MiSeq sequencing
MiSeq Sequencer

Get up to 96 Gb per sequencing run.

Data Analysis Has Never Been Easier

DNBSEQ-G99 also offers an advanced model, which includes a built-in bioinformatics module, providing secondary analysis that can begin automatically after each run.

All our sequencing platforms can work as standalone systems from sample-to-result without any network connection. As a result, there is no data breach risk, and you can be assured your data is secure.

MiSeq - Data Analysis

Find Out How DNBSEQ™ Powers Metagenomics

The DNBSEQ-G99 platform delivers the most comprehensive data, accuracy, and speed for metagenomic sequencing, outperforming competitors like MinION and NextSeq 500™. Discover the power of metagenomic sequencing for novel pathogen identification with DNBSEQ™ technology.

Performance Parameters

# of Flow CellsReads per FC*Flow CellRead Length**Data Output per FCRun Time***Q40****Q30
240MFCSAPP-D PE15012 Gb11 hr>85%>90%
80MFCLAPP-D SE1008 Gb5 hr>85%>90%
APP-D PE15024 Gb12 hr>85%>85%
APP-D PE30048 Gb30 hr>80%>85%
200MFCUAPP-D SE10020 Gb7 hr>85%>90%
APP-D PE15060 Gb16 hr>85%>85%
APP-D PE300120 Gb35 hr>85%>85%

* The minimum effective reads is based on a standard library. Actual output may vary depending on sample type and library preparation method.
** APP-D is compatible with Illumina’s Truseq, Nextera, and DNBSEQ libraries. SE50 and PE100 sequencing is supported using SE100 and PE150.
*** Run time includes sequencing and analysis (demux FASTQ output). It indicates the statistical duration for single flow cell sequencing and dual flow cell simultaneous sequencing.
**** Q40 is supported by only StandardMPS 2.0 (SM2.0) reagents and ECR3.0 software.
FCS (40M) and FCU (200M) will be launching in Q4 2025.

Specifications are based on Complete Genomics E. coli control library using Complete Genomics standard library preparation method. Actual performance may vary based on library type, library quality, insert size, and other experimental factors.

Ordering Information

CategoryProductCat. No.
InstrumentDNBSEQ-G99 Genetic Sequencer900-000889-00
Sequencing SetsDNBSEQ-G99RS High-throughput Sequencing Reagent Set V2.0 (App-D FCL SE100)940-001874-00
DNBSEQ-G99RS High-throughput Sequencing Reagent Set V2.0 (App-D FCL PE150)940-001871-00
DNBSEQ-G99RS High-throughput Sequencing Reagent Set (App-D FCL PE300) 940-001717-00
DNBSEQ-G99RS High-throughput Sequencing Reagent Set (App-D FCS PE150)940-002648-00
DNBSEQ-G99RS High-throughput Sequencing Reagent Set (App-D FCU SE100)940-002777-00
DNBSEQ-G99RS High-throughput Sequencing Reagent Set (App-D FCU PE150)940-002781-00
DNBSEQ-G99RS High-throughput Sequencing Reagent Set (App-D FCU PE300)940-002774-00
ConsumablesDNBSEQ-G99 Cleaning Reagent Kit940-000903-00

A Complete Solution for Every Step of Your Workflow
